SSH Authentication errors with Foreman's Ansible plugin

Support
#1

Hello community, I have a problem getting the Ansible plugin to work from the Foreman GUI.

The system is CentOS Linux release 7.4.1708 (Core).
I installed Foreman 1.17 by using the foreman-installer. The installation options were all related to Ansible and to the Remote Execution Plugin. I will provide the full foreman-installer command if needed.
Puppet version is 5.5.1.

Here is how I configured everything in the Foreman GUI:

foreman_ansible1
foreman_ansible1.PNG1899×785 98.4 KB

The “About” page in the Foreman GUI says that all the plugins have been installed: TFTP, Puppet, Puppet CA, Logs, Dynflow, Ansible, SSH.

Whenever I try to do a “Schedule Remote Job” from the Foreman GUI and try to execute a command (example: whoami) on some of my hosts the Job Task says the following error:

Error initializing command: Net::SSH::AuthenticationFailed - Authentication failed for user root@myhost.mydomain.

I added the following 3 lines to /etc/environment and /etc/sysconfig/foreman:

  • FOREMAN_URL=https://foreman-ansible.mydomain.pem
  • FOREMAN_SSL_CERT=/etc/puppetlabs/puppet/ssl/certs/foreman-ansible.mydomain.pem
  • FOREMAN_SSL_KEY=/etc/puppetlabs/puppet/ssl/private_keys/foreman-ansible.mydomain.pem

The /etc/ansible/ansible.cfg, /etc/foreman-proxy/ansible.cfg and /usr/share/foreman-proxy/.ansible.cfg all look the same:

[defaults]
callback_whitelist = foreman
local_tmp = /tmp
host_key_checking = False

[callback_foreman]
url = https://foreman-ansible.mydomain
ssl_cert = /etc/puppetlabs/puppet/ssl/certs/foreman-ansible.mydomain.pem
ssl_key = /etc/puppetlabs/puppet/ssl/private_keys/foreman-ansible.mydomain.pem
verify_certs = /etc/puppetlabs/puppet/ssl/certs/ca.pem

For the SSH keys I did the following:

root# ssh-keygen (Generated an id_rsa and id_rsa.pub key pairs without a passphrase)
root# cd /root/.ssh/
root# chmod 600 id_rsa*
root# cp id_rsa ~foreman-proxy/.ssh/id_rsa_foreman_proxy
root# cp id_rsa.pub ~foreman-proxy/.ssh/id_rsa_foreman_proxy.pub
root# cd ~foreman-proxy/.ssh/
root# chown foreman-proxy:foreman-proxy id_rsa_foreman_proxy*
root# ssh-copy-id -i ~foreman-proxy/.ssh/id_rsa_foreman_proxy.pub root@host1.mydomain
root# ssh-copy-id -i ~foreman-proxy/.ssh/id_rsa_foreman_proxy.pub root@host2.mydomain

I am able to login without a password from the foreman-ansible server to the target hosts (host1 and host2) from the command line (ssh root@host1.mydomain and ssh root@host2.mydomain). I am also able to run ansible from the command line as I added my hosts to /etc/ansible/hosts and /etc/foreman-proxy/hosts (ansible host1.mydomain -m command -a “uname -a”).

However, when I try to do it from the Foreman GUI it fails. with the error mentioned above.

Any suggestions on what I can do?

#2

Hello,
if I recall correctly foreman_ansible older than 2.1.2 uses ~foreman-proxy/id_rsa as the private key instead of ~foreman-proxy/id_rsa_foreman_proxy. I think it can be configured somehow, but I’m not sure how or where, @dLobatog would know. The quick and dirty solution would be just to copy or symlink the files to have the same key in both places.

#3

I think you’re right. The screenshot doesn’t show the setting “Private Key Path” which was a bug we had in previous versions of Foreman Ansible.

@Ji1990 You can do what @aruzicka mentioned, try putting the key in there. However I would recommend updating to the most recent version so the key is correct, plus you will get some other important bugfixes. It should be a matter of ‘yum update tfm-rubygem-foreman_ansible’ and restarting the server

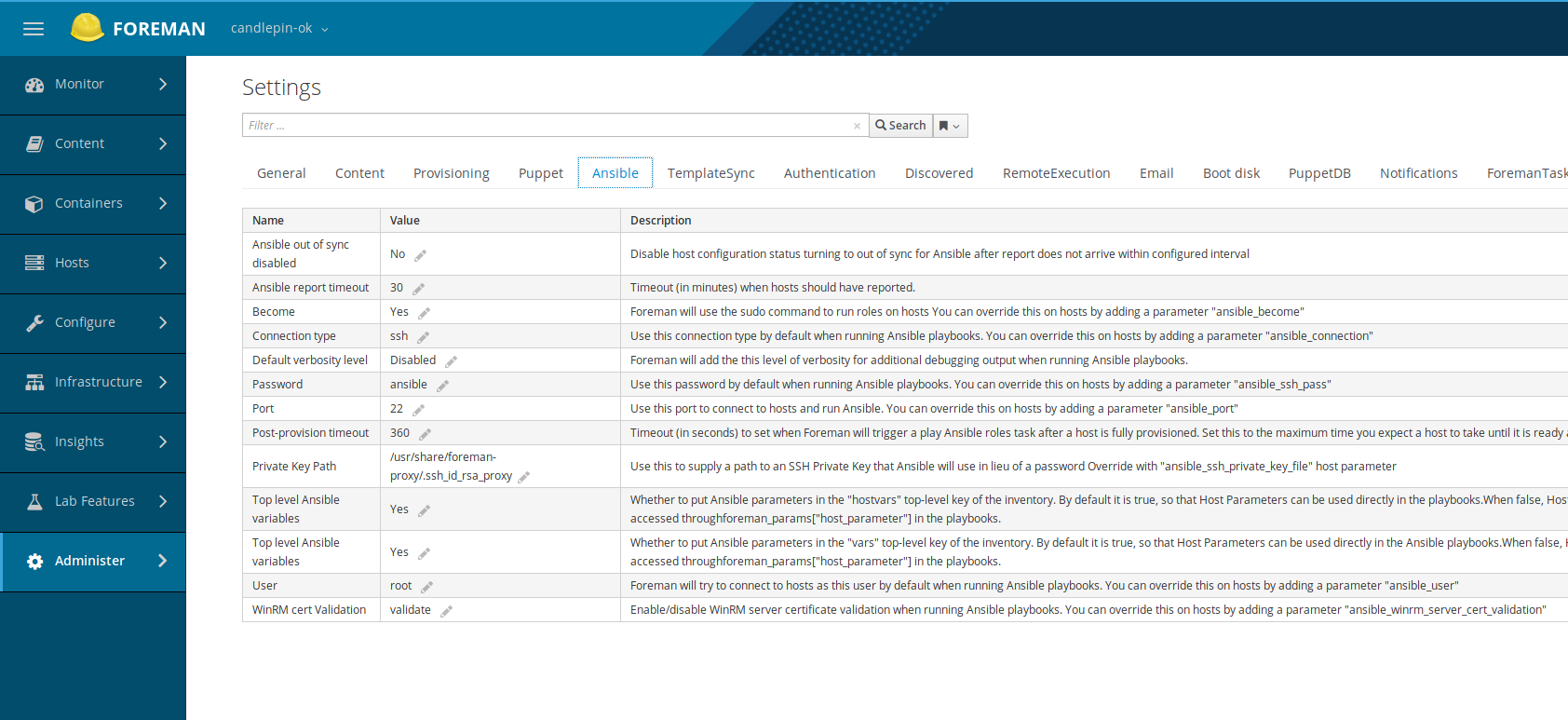

As you can see here, you should be able to choose the location of the SSH key (defaults to what you put on your original post):

Screenshot%20from%202018-06-07%2016-06-56
Screenshot from 2018-06-07 16-06-56.png1684×773 98.2 KB

Aside from that, I think you are missing FOREMAN_SSL_VERIFY in the callback configuration. You can set the path to the CA (/etc/puppetlabs/puppet/ssl/certs/ca.pem I think) or disable it (False). One of the two is necessary unless your puppet CA is included in the system CA bundle which I doubt.

Let us know if this helped.

#4

Hello, thank you both for the awesome feedback :slight_smile:

I added the FOREMAN_SSL_VERIFY=True line as described. I will try to play with the key file names as well.

The version of Ansible I have installed is:

ansible-2.5.3-1.el7.noarch

The version of the Ansible Plugin I have installed is:

tfm-rubygem-foreman_ansible_core-2.0.2-1.fm1_17.el7.noarch
tfm-rubygem-foreman_ansible-2.0.1-1.fm1_17.el7.noarch

I am not sure how you have so many available settings in the Ansible tab of the GUI.
The repository it is using is http://yum.theforeman.org/plugins/1.17/el7/x86_64/. I am not sure where I can find a newer version of the plugin. yum install/update doesn’t let me update the packages as these are the latest ones available in the repository.

The API result:

{
“id”: “foreman_ansible”,
“name”: “foreman_ansible”,
“author”: “Daniel Lobato Garcia”,
“description”: “Ansible integration with Foreman”,
“url”: “https://github.com/theforeman/foreman_ansible”,
“version”: “2.0.1”
},

#5

@Ji1990 Oh - I realized now.


was not merged to 1.17. I only see it on nightly.

About changing the SSH key path, can you try to add a parameter to your host (or a global parameter, or a host group parameter) in Foreman: ‘ansible_ssh_private_key_file’ : ‘/usr/share/foreman-proxy/.ssh/id_rsa_foreman_proxy’ ?

I am testing this on nightly now and everything works fine out of the box, except for a thing I’m debugging (/usr/share/foreman-ansible/ansible.cfg is ignored and only /etc/ansible/ansible.cfg is used) but hopefully with the host parameter you can get by until 1.18 comes out?

@packaging is there any reason why that could not be merged to 1.17? Maybe it’s because it contains the webpacked assets.

#6

Correct, in 1.17 we couldn’t deal with webpack in plugins. 1.18 should contain all the fixes needed.

#7

Thank you all for your help. I will do some tests and wait for v1.18.

You guys are amazing, keep up the great work :slight_smile:

1 Like
