Problem: booting with discovery image using pxe boot server

Expected outcome: we required to boot with pxe boot server using discovery iamge

Foreman and Proxy versions: 3.7

Foreman and Proxy plugin versions: 3.7

Distribution and version:

Other relevant data:

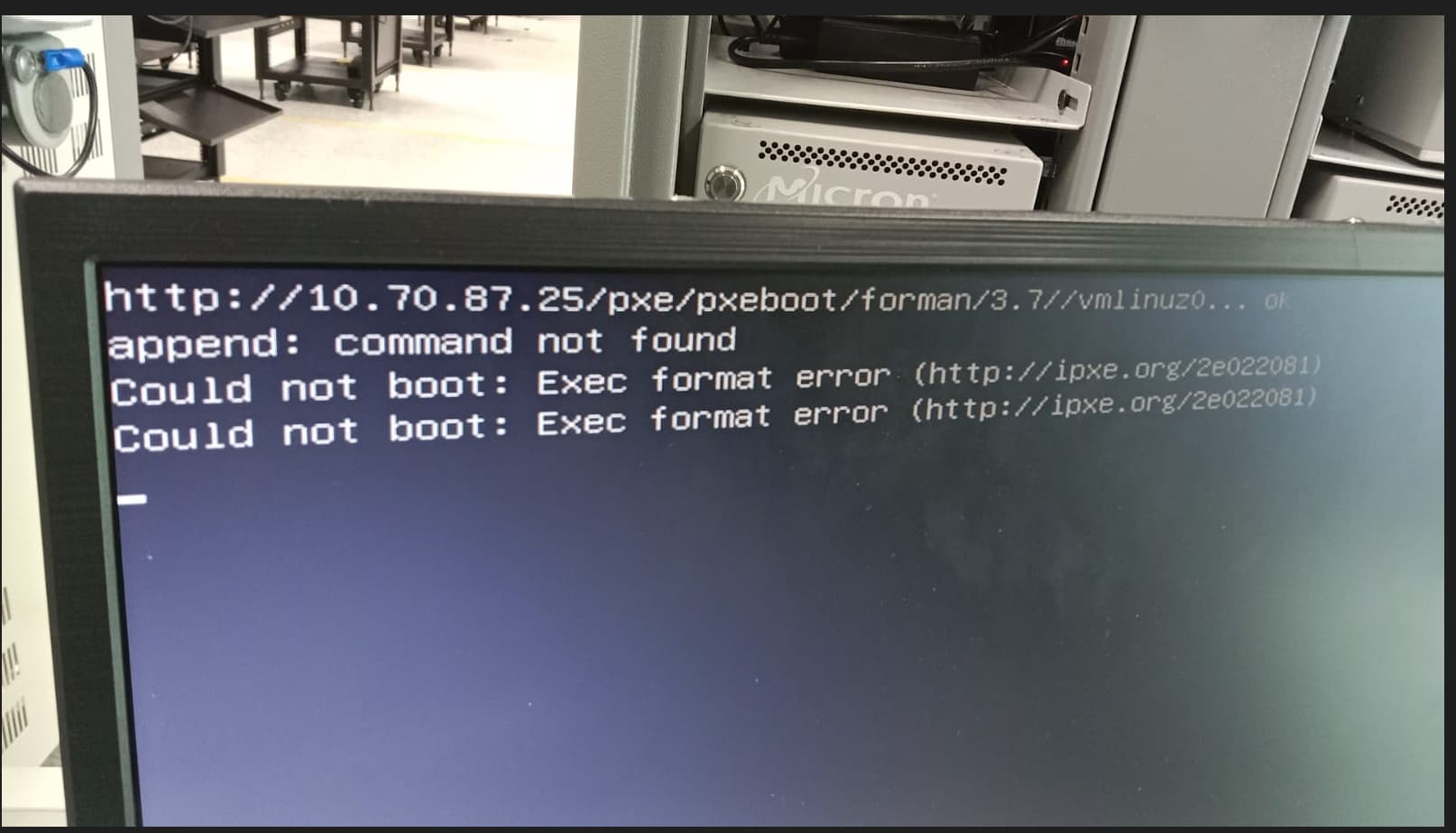

We have created a discovery image, which is successfully booted and deployed the operating system when using BIOS version, but while we are using UEFI, we are getting the following error.

image1614×923 87.2 KB

used configuration in PXE boot server which is mentioned below.

:forman37
set ks-server 10.70.87.188
set pxeiso_url http://${ks-server}/pxe/pxeboot
set ksfiles ${pxeiso_url}/forman/3.7/
kernel ${ksfiles}/vmlinuz_frmn37
append initrd ${ksfiles}/initrd_frmn37.img rootflags=loop root=live:=http://hylsitespxe/pxe/pxeboot/forman/3.7/fdi-bootable-3.7.5-230630_130930.iso rootfstype=auto ro rd.live.image rd.debug=1 acpi=force rd.luks=0 rd.md=0 rd.dm=0 rd.lvm=0 rd.bootif=0 rd.neednet=0 nomodeset proxy.url=https://hylpgladforeman.micron.com proxy.type=proxy
ipappend 2
boot

the same discovery iamge which is working when we deploy with BIOS version , we required to troubleshoot. while using UEFI please suggestions required from your end

2

Problem: booting with discovery image using pxe boot server

Expected outcome: we required to boot with pxe boot server using discovery iamge

Foreman and Proxy versions: 3.7

Foreman and Proxy plugin versions: 3.7

Distribution and version:

Other relevant data:

We have created a discovery image, which is successfully booted and deployed the operating system when using BIOS version, but while we are using UEFI, we are getting the following error.

image1614×923 87.2 KB

used configuration in PXE boot server which is mentioned below.

:forman37
set ks-server 10.70.87.188
set pxeiso_url http://${ks-server}/pxe/pxeboot
set ksfiles ${pxeiso_url}/forman/3.7/
kernel ${ksfiles}/vmlinuz_frmn37
append initrd ${ksfiles}/initrd_frmn37.img rootflags=loop root=live:=http://hylsitespxe/pxe/pxeboot/forman/3.7/fdi-bootable-3.7.5-230630_130930.iso rootfstype=auto ro rd.live.image rd.debug=1 acpi=force rd.luks=0 rd.md=0 rd.dm=0 rd.lvm=0 rd.bootif=0 rd.neednet=0 nomodeset proxy.url=https://hylpgladforeman.micron.com proxy.type=proxy
ipappend 2
boot

the same discovery iamge which is working when we deploy with BIOS version , we required to troubleshoot. while using UEFI please suggestions required from your end

3

changed to below configuration.

image1863×684 64 KB

:forman37
set ks-server 10.70.87.25
set pxeiso_url http://${ks-server}/pxe/pxeboot
set ksfiles ${pxeiso_url}/forman/3.7/
kernel ${ksfiles}/vmlinuz0
APPEND initrd=http://hylsitespxe/pxe/pxeboot/forman/3.7/initrd_frmn37.img rootflags=loop root=live:=http://hylsitespxe/pxe/pxeboot/forman/3.7/fdi-bootable-3.7.5.iso rootfstype=auto ro rd.live.image rd.debug=1 acpi=force rd.luks=0 rd.md=0 rd.dm=0 rd.lvm=0 rd.bootif=0 rd.neednet=0 nomodeset proxy.url=https://hylpgladforeman.micron.com proxy.type=foreman
IPAPPEND 2
boot

4

still we are getting same issue Please suggest me for configuration

5

if anyone able to suggest it would be great help for me .
